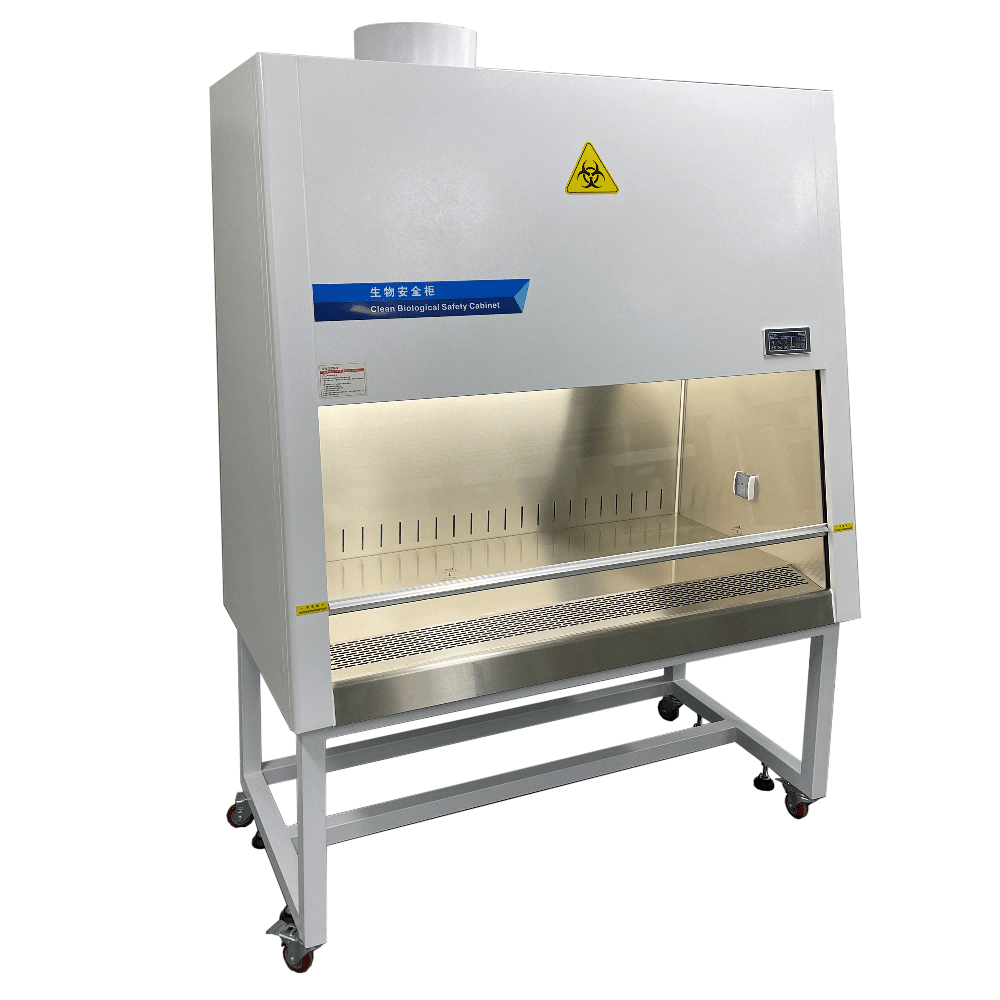

Product Description
◆ Features an air-curtain containment design to prevent cross-contamination between the internal and external environments (utilizing a negative-pressure system).
◆ Equipped with a vertically sliding glass sash featuring a height-limit alarm system to ensure correct and safe operation by the user.
◆ A dedicated filtration system is installed at the exhaust outlet to effectively control and minimize pollutant emissions.
◆ Includes specialized waterproof power outlets to provide maximum convenience for the operator.
◆ Features an LED LCD control panel that allows for real-time monitoring of the instrument’s downflow airflow and intake air velocity.
◆ The experimental chamber is constructed entirely from high-quality 304 stainless steel; the work zone is further equipped with a 2kW auxiliary power outlet to facilitate operator tasks.
◆ The work surface features an ergonomically designed 10° forward tilt, ensuring comfortable and fatigue-free operation.
| Technical parameters | |
| Model | BSC-1220A2 |
| Overall size | 1420×710×2160（W×D×H）mm |
| Purification area size | 1220×610×610（W×D×H）mm |
| Purification efficiency | Class 100（America federal standard 209E） |
| Average air velocity | 0.25-0.5m/s |
| Front inflow air | ≥0.5m/s |
| Power | 0.8KW |
| Average number of colonies | ≤0.5（pieces/dish/hour） |
| Noise | ≤67dB（A） |
| Vibration/half peak amplitude | ≤3μm（X·Y·Z） |
| Power supply | 220V 50HZ |
| Fluorescent lamp/UV lamp | T5 LED28W×② / T630W×① |
| Wind direction | Top φ300mm |
| Air tightness | 99.99≤E≤99.999 |
| Illumination | ≥700LX |

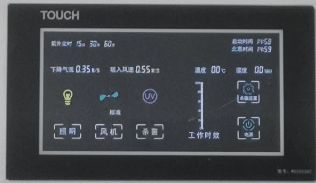

 | Equipped with a brand-new LED LCD panel capable of displaying the instrument’s startup time and operating duration; it simultaneously displays the downflow and inflow air velocities, and features a high-efficiency filter replacement reminder function as well as a programmable timer for automatic UV lamp shut-off. |

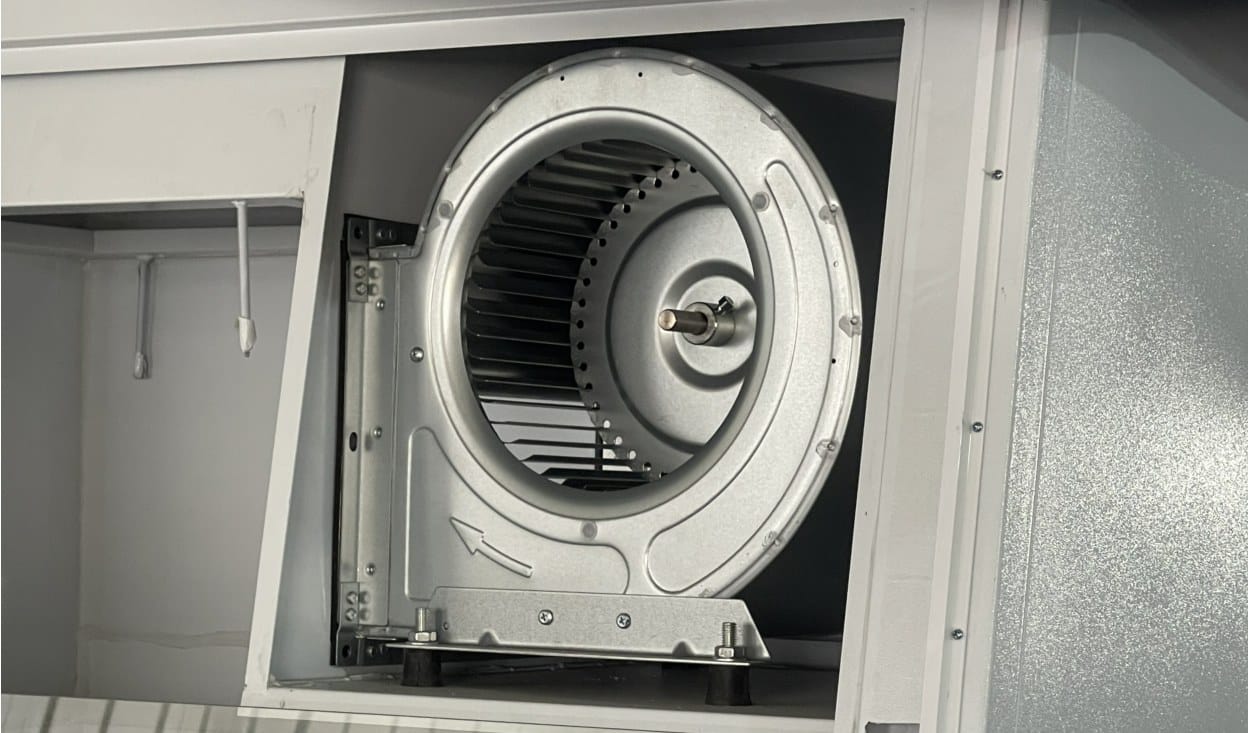

 | Equipped with a high-quality central air conditioning fan to ensure stable airflow within the instrument. |

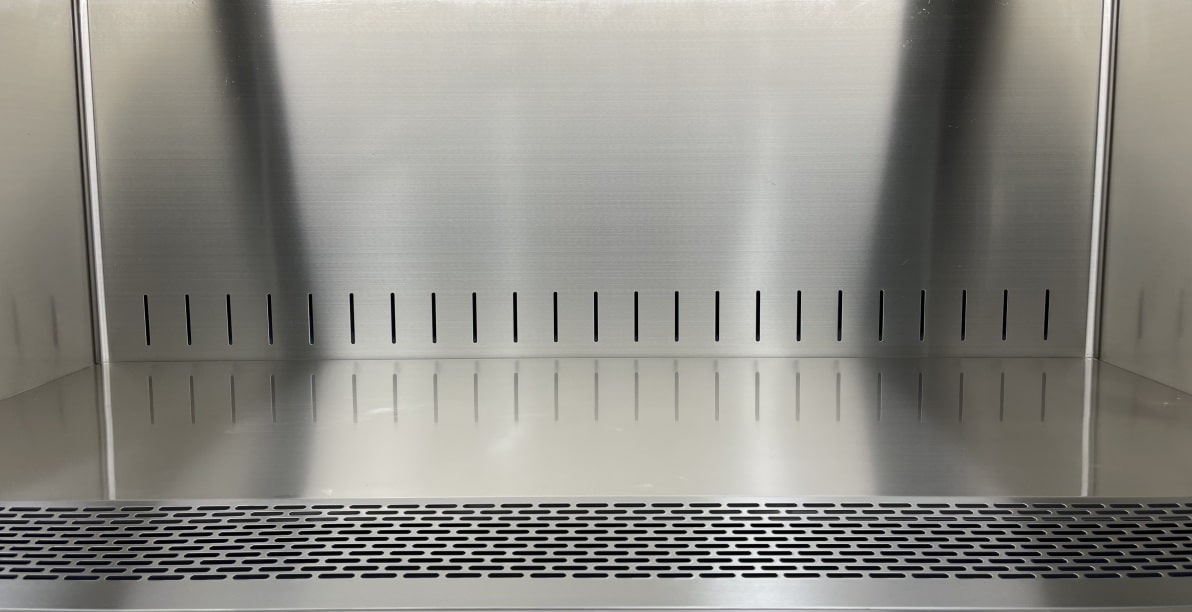

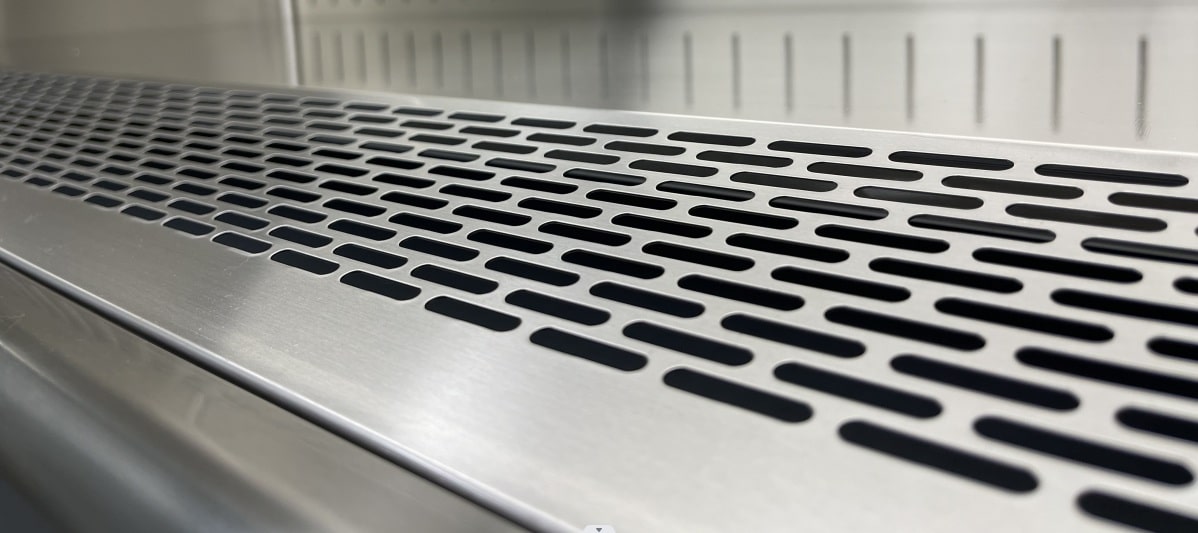

 | Featuring a removable work surface and a fully stainless steel interior chamber with a U-shaped wrap-around design, the unit ensures that the work area remains aesthetically pleasing, clean, and lustrous, while being resistant to rust and scratches. The work surface is engineered with a sloped angle, which guarantees optimal airflow intake—even without the use of an armrest—thereby alleviating operator arm fatigue. |
 | |

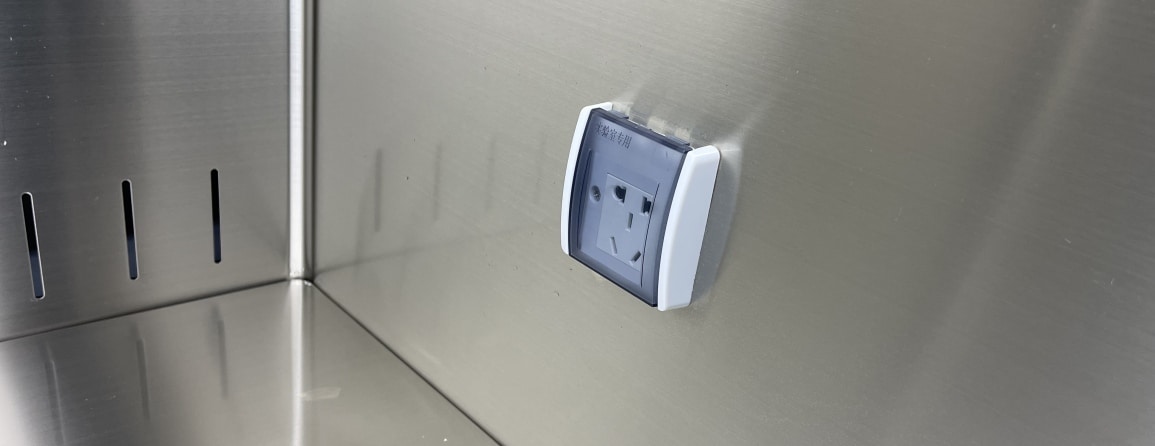

 | A 220V five-hole power outlet is installed within the operating area to accommodate the electrical needs of laboratory personnel. |

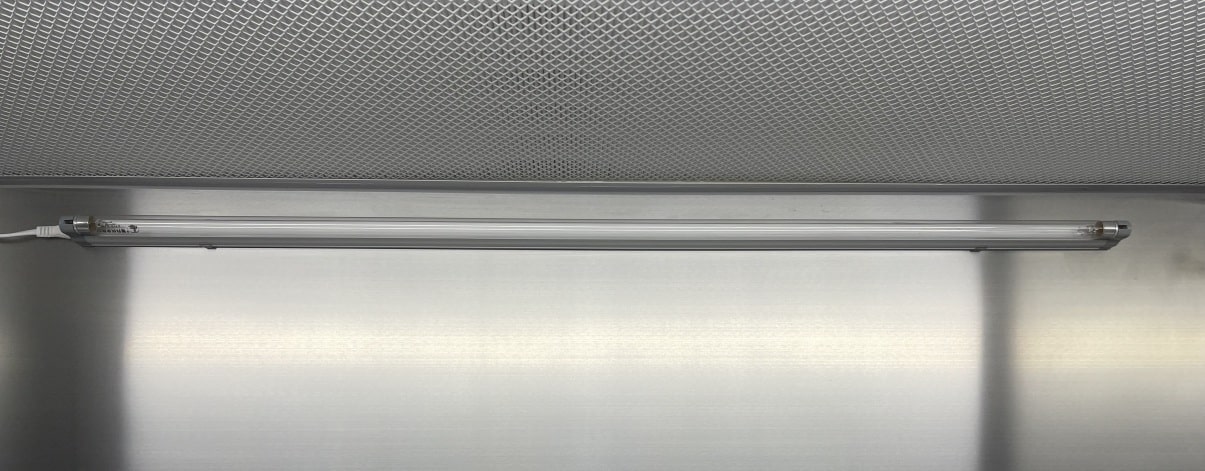

 | The operating area is equipped with integrated LED and UV light fixtures, facilitating easy installation, removal, and replacement by laboratory personnel. |

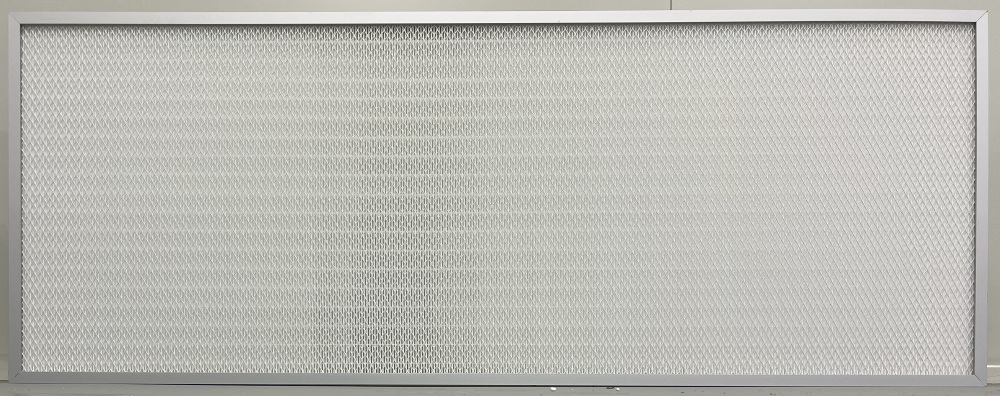

 | The ultra-high-efficiency filters utilized in this equipment are all rated at the U15 level and are reinforced with double-sided mesh screens; this design not only safeguards the integrity of the filter paper on both sides but also significantly enhances the overall structural strength of the high-efficiency filters. |
