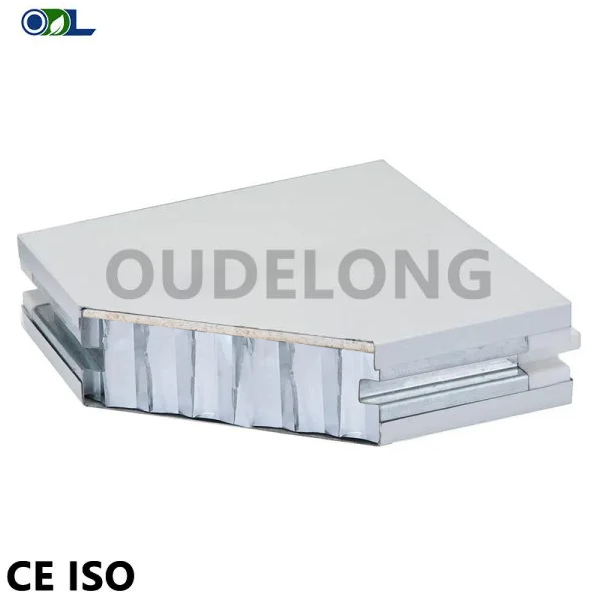

Magnesium Aluminum honeycomb manual clean board is a high-grade decorative plate specially designed for clean rooms. It uses aluminum honeycomb as the core material, with steel sheets on both sides and cold-rolled profiled frames on the four sides. It has a number of prominent advantages
Product Characteristics
- Superior Fire Resistance: The core and panel materials of the Magnesium aluminum honeycomb manual clean board are both non-flammable materials, and the overall fire resistance rating can reach A level, which can effectively prevent fire occurrence
- Excellent Sound Insulation: Due to its unique honeycomb structure, the board has good sound insulation performance, which can effectively isolate noise and create a quiet working environment
- Accurate Size Control: The Magnesium aluminum honeycomb manual clean board has high processing precision, accurate geometric size, facilitating installation, and the installation effect is neat and uniform
- Lightweight and High Strength: Although the Magnesium aluminum honeycomb manual clean board uses less material, its unique structure makes it have high strength and rigidity, while being lightweight and easy to handle and install
- Attractive Appearance: The board has a flat and beautiful surface, with diverse colors to meet the decorative needs of different scenarios
| Technical Parameter | |
| Thickness | 50mm, 75mm, 100mm, 150mm, 200mm |
| Standard width | 950mm, 1150mm |
| Tolerance | ≤1mm |
| Maximum Length | ≤10000mm |
| Panel Coating Material | PE, can be customised with PVDF, anti-static, stainless steel, HDP and PVC coatings. |
| Filled Core Material | Aluminium honeycomb specification 0.04~0.05mm, magnesium glass thickness 5mm |
| Panel thickness | 0.45mm, 0.5mm thickness optional |
| Thickness of keel | 0.6mm-0.8mm |
| Corner | Galvanised/ABS |
| Bending ability | 0.9KN/m² |
| Bonding performance | 0.15MPa |
| Peeling rate | ≥ 85%-≤ 98%. |
| Heat transfer coefficient | ≤0.030 m.k |
| Protective Coating | 0.06mm thickness, >0.06mm can be customised |
| Connection method | Middle aluminium connection , male and female port continuous |
| Fireproof | Yes |
| Type | H-board (flat, pressed), enterprise mouth board, corrugated sandwich panel |
Production Process
The production process of the Magnesium aluminum honeycomb manual clean board includes material selection, cutting, forming, assembly, and other steps. In the production process, strict control is exercised at each process to ensure the performance and quality of the final product
Application Field
The Magnesium aluminum honeycomb manual clean board is widely used in the wall and ceiling decoration of clean rooms in pharmaceutical, food, electronics, biotechnology industries, as well as theaters, concert halls, conference rooms, etc., where high acoustic requirements are needed
In conclusion, the Magnesium aluminum honeycomb manual clean board is a high-performance material that combines excellent fire resistance, sound insulation, and decorative effects, making it a popular choice for a variety of high-standard clean room applications.
